2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

Product Categories
Shenzhen YZY Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

  • 1
  • 2

Model Number : YBC028EGE-Q2（ES3C28P）

Certification : CE,RoHS

Resolution : 240×320 Pixels

Delivery Time : 30 Working days

Size : 2.8 inch

Touch Type : No Touch / Capacitive touch(Optional)

Brand Name : YZY

MOQ : 500 pcs

Payment Terms : T/T

Price : $11.99-15.99/Piece

Place of Origin : China

Supply Ability : Up to 5,000 pcs/day

Applications : IoT Devices, HMI, Education, Prototyping

Contact Now

YBC028EGE-Q2 (ES3C28P) 2.8-inch IPS TFT ESP32 Development Board
The YBC028EGE-Q2 (ES3C28P) is a 2.8-inch ESP32 development board featuring WiFi, Bluetooth, and a 240x320 resolution smart display screen. This advanced module combines powerful processing capabilities with rich peripheral interfaces for IoT and human-computer interaction applications.
Product Overview
ES3C28P and ES3N28P are two 2.8-inch IPS display modules with built-in ESP32-S3 main control. The ES3C28P features FT6336G capacitive touch screen capability, while ES3N28P does not include touch functionality. Both products utilize the LI9341V screen display driver IC with 240x320 resolution and support connection to various peripherals including I2C interface devices, audio speakers, lithium batteries, MicroSD cards, serial ports, and expansion IO devices.
Key Features
  • Equipped with ESP32-S3 for convenient development with extensive resources
  • 2.8-inch color screen with 240x320 resolution, supporting up to 262K colors (RGB666)
  • Rich interfaces for easy connection to various peripherals (I2C, UART, etc.)
  • Supports external speakers for audio playback
  • Built-in microphone for audio reception
  • RGB three-color indicator lights for comprehensive status display
  • Capacitive touch screen for convenient human-machine interaction
  • Standard TYPE-C interface for programming and power supply
  • Micro TF card slot for easy storage expansion
  • Supports external lithium batteries for portable operation
  • Battery charging management circuit for safe charging and discharging
  • Comprehensive example programs for easy learning
  • Technical support for low-level drivers with online WIKI materials
  • Military-grade standards compliance through aging tests and multiple inspections
  • Support for "Xiaozhi" AI voice chat functionality

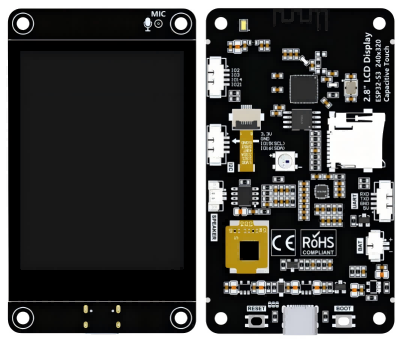

Product Image
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Technical Specifications

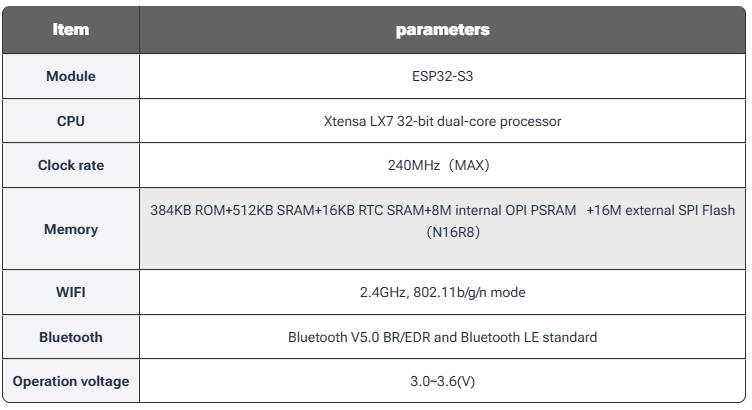

ESP32 Main Control Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
TFT Display Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

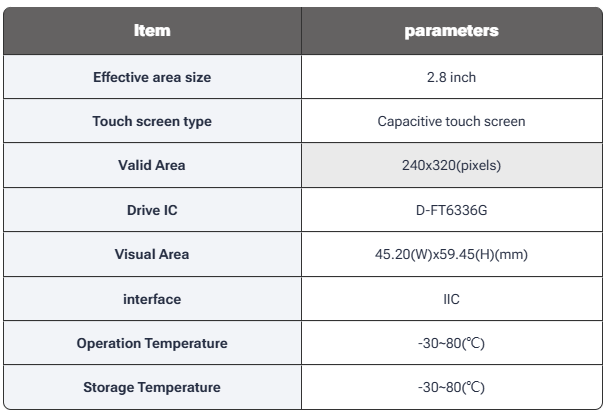

Touch Screen Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

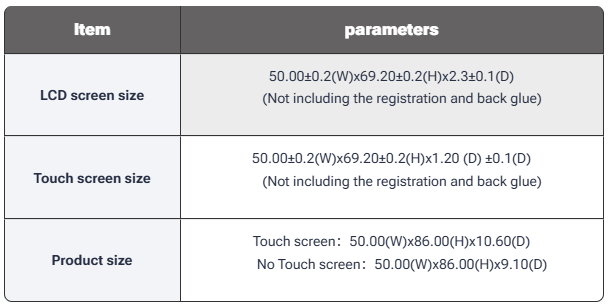

Size Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Battery Charging Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Electrical Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Other Parameters
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

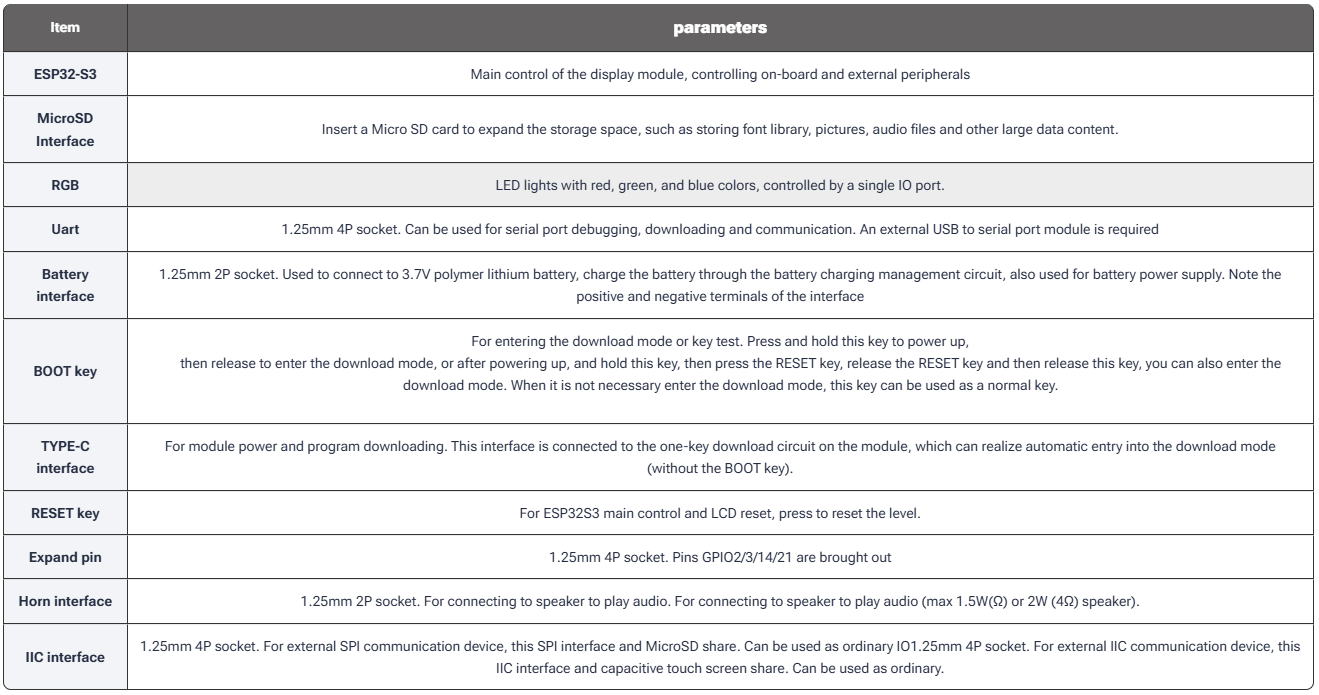

Product Interface
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen 2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen

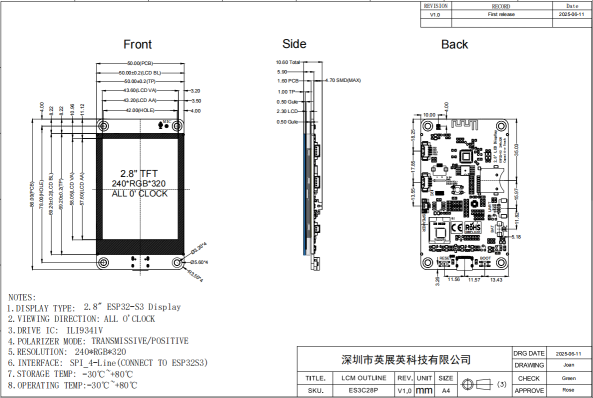

Product Dimensions
2.8-inch IPS TFT ESP32 Development Board with WiFi and Bluetooth and 240x320 Resolution Smart Display Screen
Quality Assurance
This module has undergone comprehensive aging tests and multiple inspections to meet military-grade standards, ensuring stable and long-term operation in demanding environments.
